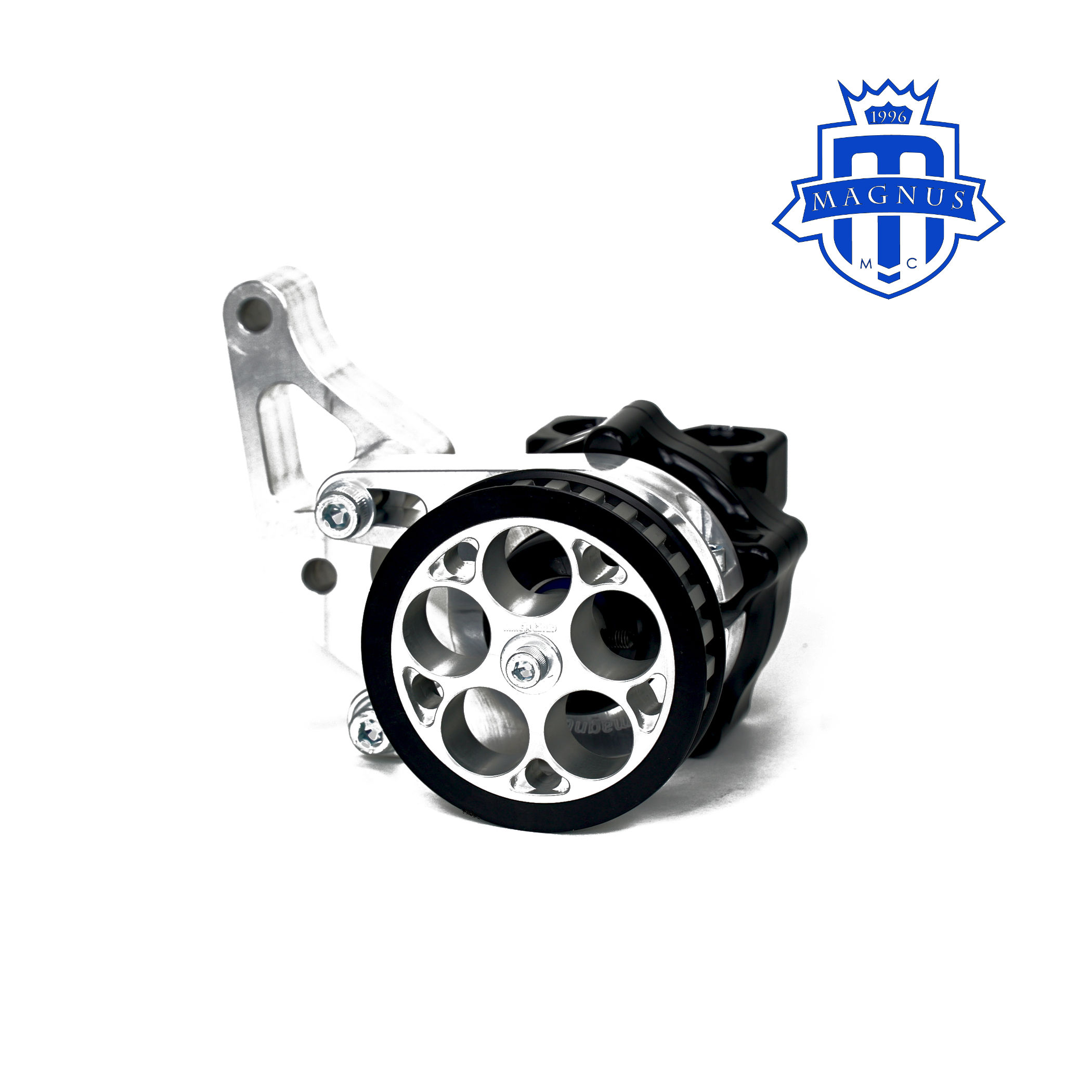

Magnus 4G63 Low Mount Mechanical Fuel Pump Kit #32841

Magnus 4G63 Low Mount Mechanical Fuel Pump Kit #32841

Magnus 4G63 Low Mount Mechanical Fuel Pump Kit

(0 reviews)

Magnus has developed the low mount mechanical fuel pump for Evo, and all RWD 4G63 powered vehicles. Because of our pioneering efforts in methanol fueling for 4G63s, we found that Electric pumps were not only noisy and taxing on the cars charging system, but reliability was not the same as with a mechanical setup, not to mention that multiple pumps had to be run to provide the proper fuel flow. The heating of fuel associated with running multiple pumps can cause serious tuning issues, or in more serious circumstances can cause the engine to lean out during high rpm/high boost situations. The mechanical fuel pump ads no additional heat to the fuel keeping it cool and consistent. Designed to be used with the Magnus MF Fuel Pump Features Increased fuel flow 1 mechanical pump is all that is needed for 2000hp+ Safety in case of motor failure or fire, engine driven pump no longer turns, fuel supply is shut off with engine kill Superior Reliability no electrical connection or relays to fail Reduced weight weighs in at less than 1/4 of comparable electric pumps nd Evolutions. The Magnus Mechanical Fuel Pump Drive is CNC machined and bolts to the cylinder head, accurately positioning your hex drive fuel pump (Waterman or Aeromotive) with your camshaft, and is driven at 1/2 engine speed eliminating the need for a separate cogged belt. Lovejoy couplers eliminate run out variances between cam gear manufacturers that can cause eccentricity in the drive system.

Can be run with Alcohol fuels or Gasoline.

Benefits of the mechanical fuel pump drive are:

  • Increased fuel flow - 1 mechanical pump is all that is needed for 2000hp
  • Safety - in case of motor failure or fire, engine driven pump no longer turns, fuel supply is shut off with engine kill
  • Superior Reliability - no electrical connection or relays to fail
  • Reduced weight - weighs in at less than 1/4 of comparable electric pumps

Note: DSM 1990-1999 / EVO 1-3 must use Waterman pump.

Mechanical fuel pump sold separately.
