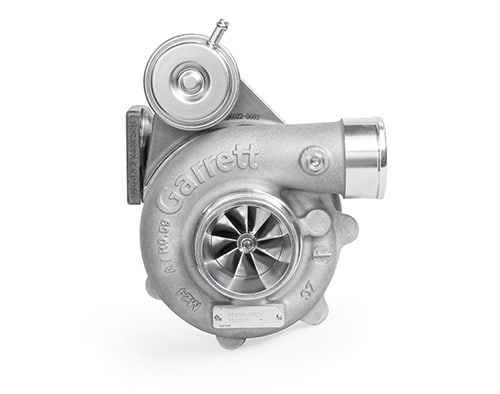

Garrett GBC17-250 36mm Journal Bearing Turbocharger : 150-250 HP #33916

		(0 reviews)

Club Line is a product engineered for small engine displacements. This includes powersports, personal watercraft, and automobiles. These turbochargers feature internally wastegated turbine housings and journal bearing rotating groups. GBC stands for GARRETT BOOST | CLUB LINE. The first two numbers indicate the turbo frame size. The larger the number the larger the turbine wheel. The numbers following the dash indicate the peak potential flywheel horsepower rating.

Horsepower: 150 - 250

Displacement: 0.6L - 1.5L

GBC17-250

36mm compressor inducer | 49mm compressor exducer
17, 20 and 22 outline interchangeable
150 –250 horsepower capability
Internal wastegate assembly with calibrated actuator
Billet compressor wheel with extended tip design for higher pressure ratio capability
GTX Gen II compressor aero with modern gasoline turbine wheel aero
Journal bearing rotating group
Engineered for small displacement engines including powersports, personal watercraft and automobiles

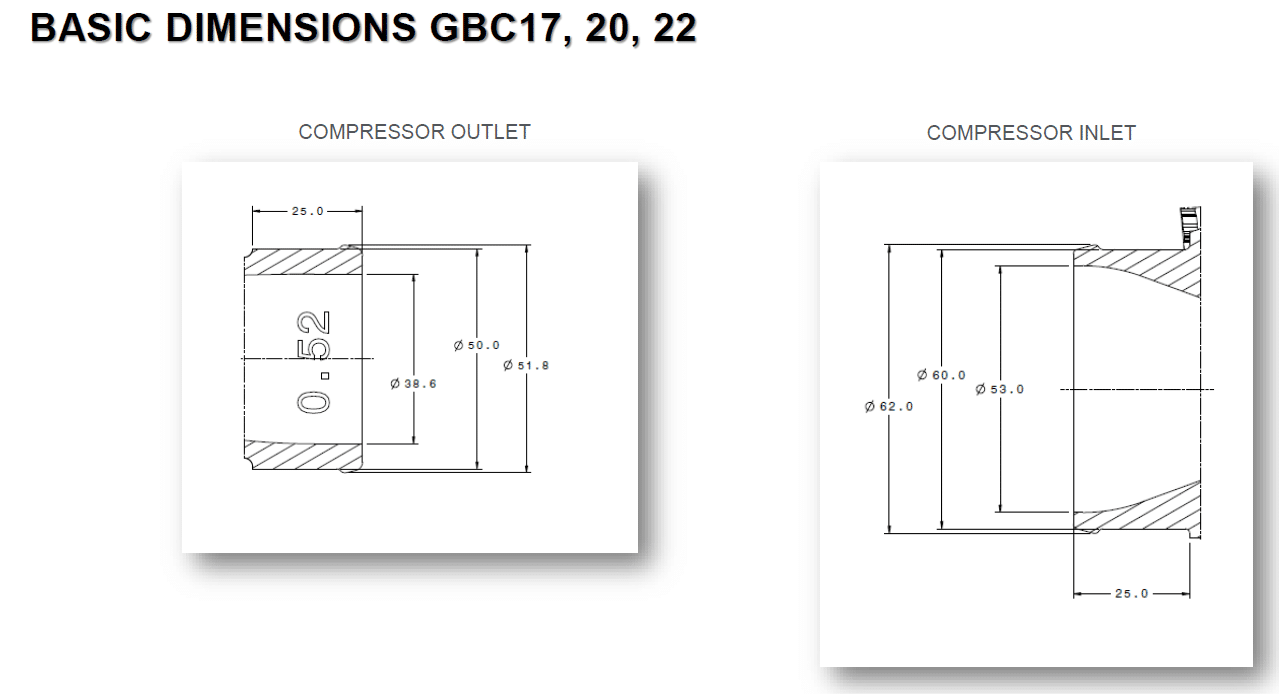

Compressor Specs:
Wheel Inducer Diameter: 36.0mm
Wheel Exducer Diameter: 49.0mm
A/R: 0.52

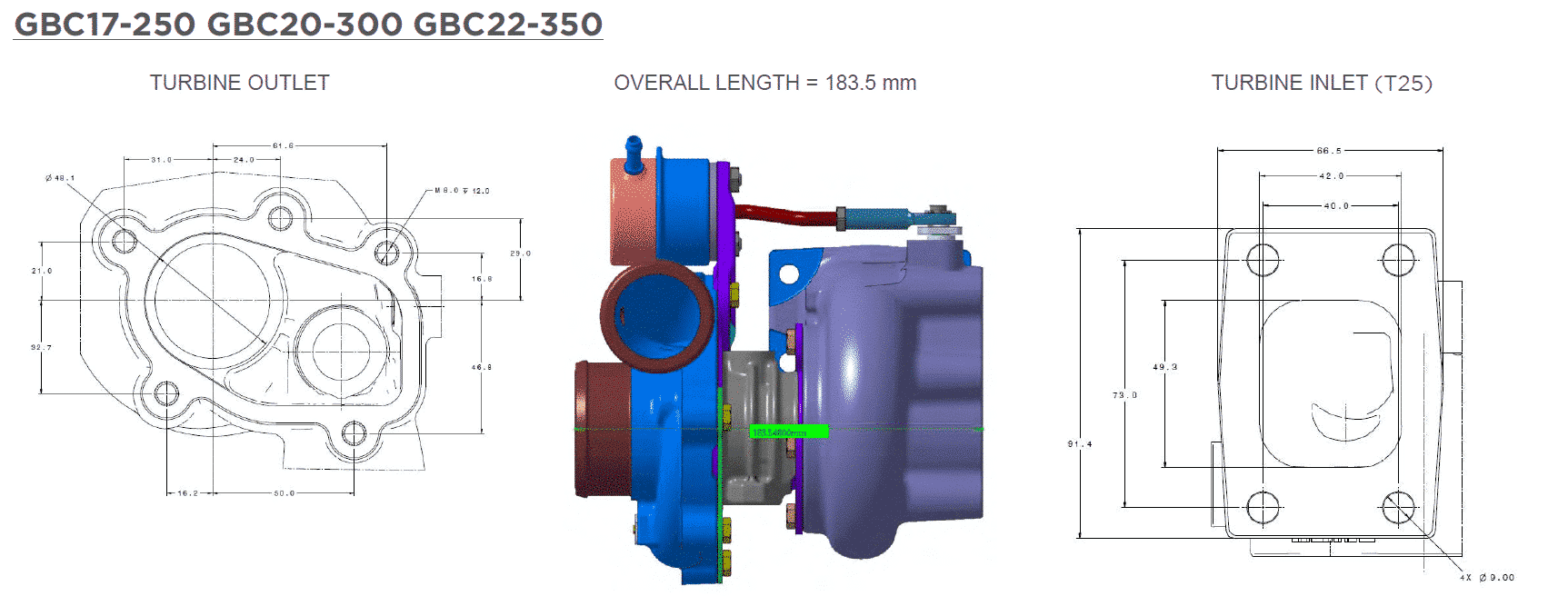

Turbine Specs:
Wheel Inducer Diameter: 44.0mm
Wheel Exducer Diameter: 40.0mm
Trim: 80
A/R: 0.5

15%

Details

SKU GRT-896052-5003S

Retail price: $1030.57

Our price:

$875.98
